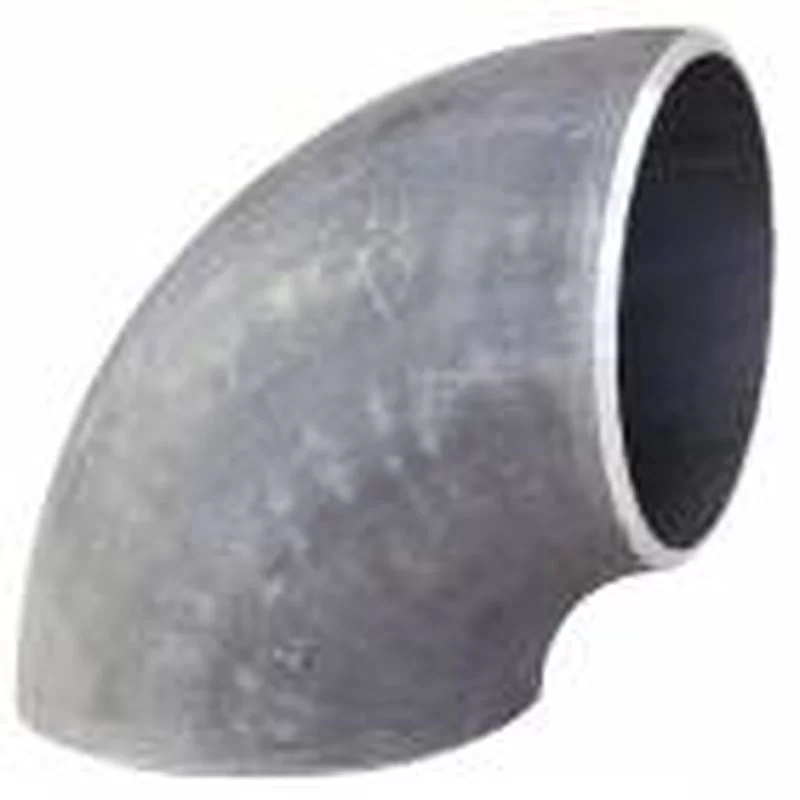

SR ELBOW 90 DEG

A Short Radius (SR) Elbow is a directional fitting where the centerline radius equals the nominal pipe size ($R = 1.0D$). Designed specifically for restricted spaces, it allows piping systems to make tight turns where standard long-radius elbows cannot fit due to physical clearance limitations.

Key Features

• Compact Footprint: Significantly shorter turning radius saves valuable space in congested modular or skid-mounted assemblies.
• Higher Flow Resistance: Creates a sharper turn, resulting in a higher pressure drop and increased turbulence compared to long-radius fittings.
• Robust Welded Construction: Engineered to withstand system pressures equivalent to matching straight pipe runs when properly specified.

Applications

• Skid-Mounted Equipment: Compact modular process skids and packaged compressor units.
• Marine & Shipbuilding: Tight engine room piping layouts and confined bilge or ballast lines.
• Plant Retrofits: Brownfield upgrades where existing structural steel or equipment prevents the installation of standard long-radius bends.

Why Choose Hebei Haiyuan Pipe Fitting Co., Ltd.?

When sourcing vital pipeline components, partnering with Hebei Haiyuan Pipe Fitting Co., Ltd. guarantees industrial excellence, reliability, and value:

• Advanced Manufacturing & Forging Expertise: We utilize state-of-the-art hot forging and precision CNC machining technology to optimize metal grain structures and ensure absolute dimensional accuracy.
• Rigorous Quality Assurance: Every batch undergoes strict testing, including chemical composition analysis, mechanical property verification, and non-destructive examination (UT/MT) before shipment.
• International Standards Compliance: Our production strictly adheres to European specifications (EN 1092-1), ensuring seamless compatibility with global piping networks.
• Comprehensive Inventory & Customization: We maintain extensive stock readiness across various sizes (DN) and pressure ratings (PN), while also offering custom engineering for unique project blueprints.
• Direct-from-Factory Advantage: Enjoy competitive pricing without middleman markups, backed by dependable global logistics and prompt customer support.
